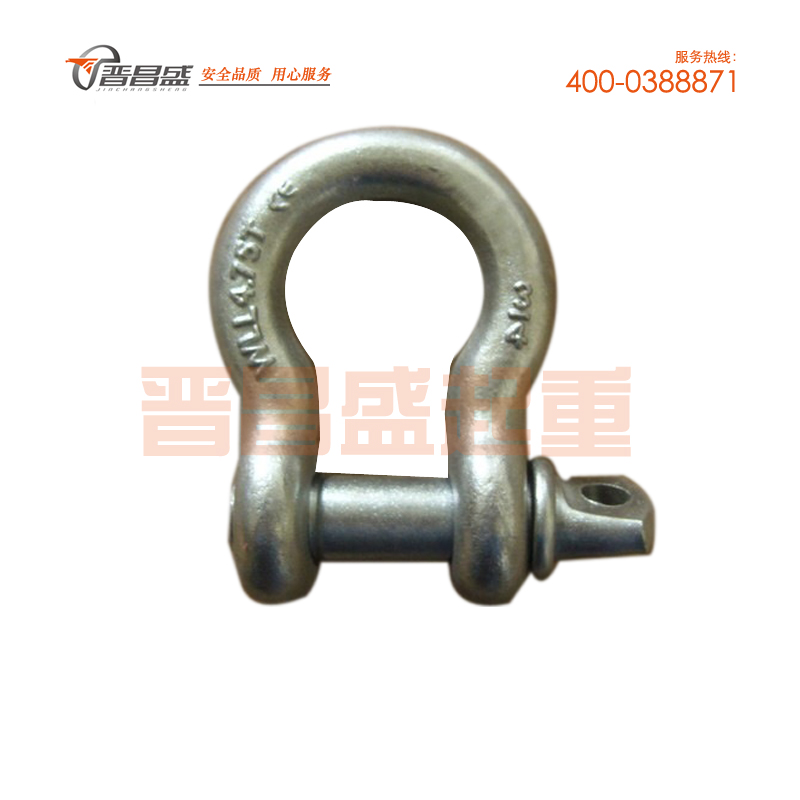

美標弓型卸扣2130的產(chǎn)品型號包括1/2、5/8、3/4、7/8、1等，額定載荷的噸位包括2噸、3.25噸、4.75噸、6.50噸、8.5噸、9.5噸、12噸、13.5噸、17噸、25噸、35噸、85噸、120噸、150噸。
產(chǎn)品技術(shù)參數：|
型號 in |
額定載荷 ton |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
H mm |
L mm |
P mm |
重量 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 83.3 | 58.7 | 71.1 | 0.36 |
| 5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 106.4 | 74.7 | 89.7 | 0.76 |
| 3/4 | 4.75 | 31.8 | 22.4 | 71.4 | 19.1 | 50.8 | 45.0 | 126.2 | 88.9 | 103.4 | 1.23 |
| 7/8 | 6.50 | 36.6 | 25.4 | 84.1 | 22.4 | 57.9 | 53.1 | 148.1 | 102.4 | 119.6 | 1.79 |
| 1 | 8.5 | 42.9 | 28.7 | 95.3 | 25.4 | 68.3 | 60.5 | 166.9 | 119.1 | 134.9 | 2.57 |
| 11/8 | 9.5 | 46.0 | 31.8 | 108.0 | 28.7 | 73.9 | 68.3 | 189.7 | 131.1 | 149.9 | 3.75 |
| 11/4 | 12.0 | 51.6 | 35.1 | 119.1 | 31.8 | 82.6 | 76.2 | 209.6 | 146.1 | 165.4 | 5.31 |
| 13/8 | 13.5 | 57.2 | 38.1 | 133.4 | 35.1 | 92.2 | 84.1 | 232.7 | 162.1 | 183.1 | 7.18 |
| 11/2 | 17.0 | 60.5 | 41.4 | 140.1 | 38.1 | 98.6 | 92.2 | 254.0 | 174.8 | 196.3 | 9.43 |
| 13/4 | 25.0 | 73.2 | 50.8 | 177.8 | 44.5 | 127.0 | 106.4 | 313.4 | 225.0 | 229.8 | 15.38 |
| 2 | 35 | 82.6 | 57.2 | 196.9 | 50.8 | 146.1 | 122.2 | 347.5 | 253.0 | 264.4 | 23.70 |
| 21/2 | 55 | 104.9 | 70.0 | 266.7 | 66.5 | 184.2 | 144.5 | 453.1 | 326.9 | 344.4 | 44.57 |
| 3 | 85 | 127.0 | 82.6 | 330.2 | 76.2 | 200.2 | 165.1 | 546.1 | 364.7 | 419.1 | 69.85 |
| 31/2 | 120 | 133.4 | 95.3 | 371.6 | 91.9 | 228.6 | 203.2 | 625.6 | 419.1 | 482.6 | 120.2 |
| 4 | 150 | 139.7 | 108.0 | 368.3 | 104.1 | 254.0 | 228.6 | 652.5 | 467.9 | 501.7 | 153.32 |
